Ürünler / Fulltech / Roof Fan / RF190APA Serisi

RF190APA Serisi

Roof Fan

General Data:
Frame/Housing		: Plastic
Impeller		: Plastic
Bearing System		: Ball bearing
Motor		: Capacitor run motor
Protection		: Thermally-Protected
Insulation Resistance		: Above 100MOhm, DC500V
Dielectric withstand voltage		: AC 1,500V (50/60Hz) one minute
Life Expectancy		: Over 40,000 hr. (at 40°C)
Safety Approval		: CE

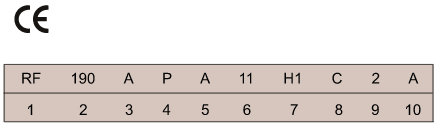

Description of Model No

1.Model Series:	2.Blade Diameter:	3.Sort of Fran
RF: ROOF FAN	190: O 190mm	A: Centrifugal Fan



4.Sort of Blade:	5.Air Direction:	6.Voltage:
P:Plastic	A:Backward Curve	11:115V
	Single Air Intake	23:230V


7.Speed:	8.Sort of Motor	9.Poles of Motor:	10.Special Requirement:
H1:High	C:Capacitor Run Motor	2:2P	A:Standard

RF190APA Serisi
