Ürünler / Fulltech / Duct Fan / DF200P Serisi

DF200P Serisi

Duct Fan

General Data:

Frame/Housing		: Plastic
Impeller		: Plastic
Bearing System		: Ball bearing
Motor		: Capacitor run motor
Insulation Resistance		: Above 100MOhm, DC500V
Dielectric withstand voltage		: AC 1,500V (50/60Hz) one minute
Life Expectancy		: Over 40,000 hr. (at 40°C)
Safety Approval		: CE.

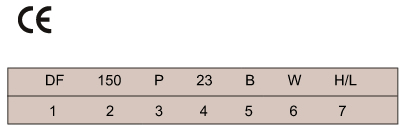

Description of Model No

1.Model Series:	2.Blade Diameter:	3.Material of Frame
DF: DUCT FAN	150: O 150mm	P:Plastic
	200: O 200mm


4.Voltage:	5.Bearing:	6.Electrical Connection:
11:115V	B:Ball	T:Terminal Type
23:230V	S:Sleeve	W:Lead Wire


7.Speed:
H/L: Dual Speed(Standard)
